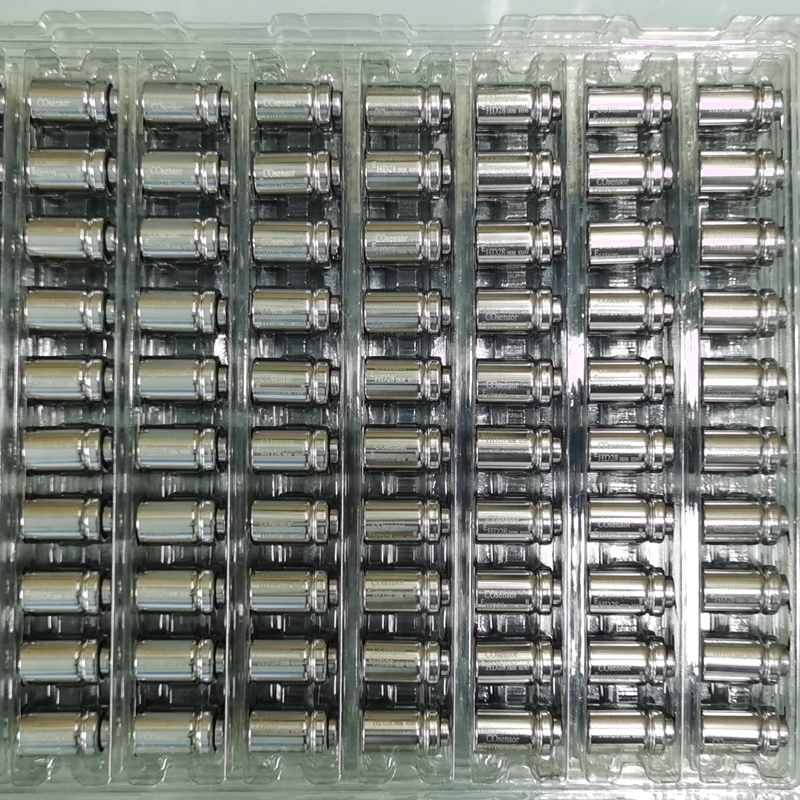

HD28 Carbon Monoxide Sensor
1. Adopting electrochemical principles, the product has a long service life;
2. Low sensitivity to ethanol;
3. Linear output characteristics that reduce the influence of various interfering gases and are high;
4. The consistency, safety, and stability of sensors;
5. Accurate and sensitive selectivity and repeatability for carbon monoxide gas;
6. The sensor signal output is linearly related to the concentration of carbon monoxide gas;
7. Has obtained TUV RoHS certification;
8. Meet the requirements of UL2034 and EN5029;
Product details


一、HD28The main parameters of carbon monoxide sensors:

1length29mm±0.2mm
2height20mm±0.2mm
3The diameter of the body is16.5mm±0.2mm
4component feet length3.5mm±0.2mm
5component feet distance29mm±0.2mm
6Both feet spacing7.2mm±0.2mm
7distance PCB board height16.5mm±0.2mm
8Testing accuracy< 2%
9detection range0-1000
10output current1-2.5 nA/ppm
11response time< 50 S
12Humidity of working humidity5 - 99% RH
13Repeatability1% F.S
14lag1% F.S
15drift1
16sensitivity1
17Protection LevelIP55
18Working temperature-15℃--+60℃
19net weight10grams
20
years of service life10years

二、HD28Carbon monoxide sensor typical application:

1. Residential and commercial;   2. Car alarm;   3. Smart Home;   4. Commercial carbon monoxide test instrument;   5. Industrial carbon monoxide detector;   6. indoor parking lot ventilation control;
7. Portable carbon monoxide concentration meter;   8. CO Detection alarm。
