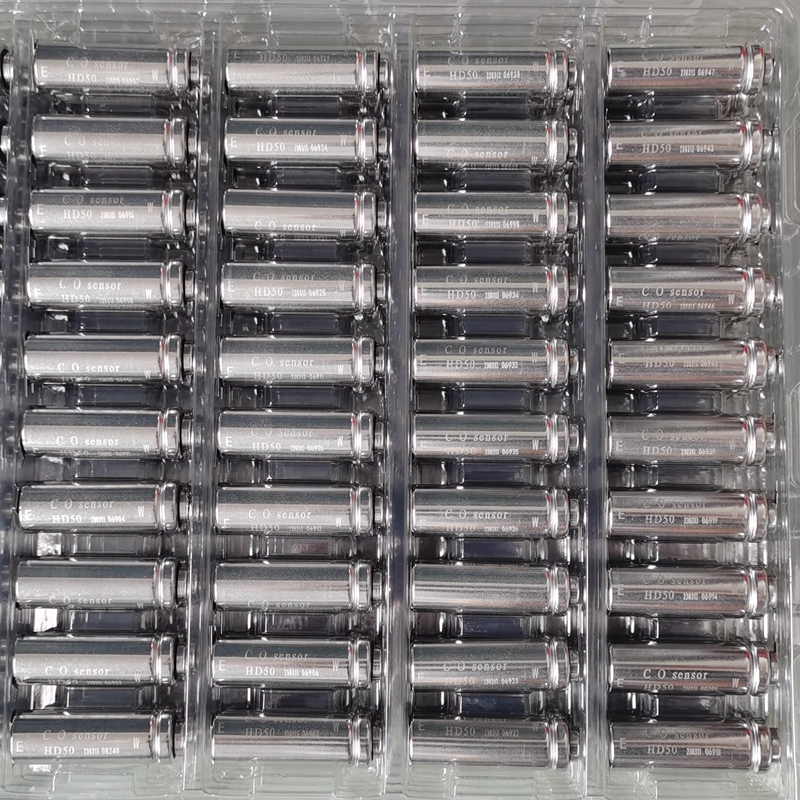

HD50 carbon monoxide sensor

1. Adopting electrochemical principles, the product has a long service life;
2. Low sensitivity to ethanol;
3. Linear output characteristics that reduce the influence of various interfering gases and are high;
4. The consistency, safety, and stability of sensors;
5. Accurate and sensitive selectivity and repeatability for carbon monoxide gas;
6. The sensor signal output is linearly related to the concentration of carbon monoxide gas;
7. Has obtained TUV RoHS certification;
8. Meet the requirements of UL2034 and EN5029.

Product details

一、HD50The main parameters of carbon monoxide sensors：

1	length	51mm±0.2mm
2	height	20mm±0.2mm
3	The diameter of the body is	16.5mm±0.2mm
4	component feet length	3.5mm±0.2mm
5	component feet distance	51mm±0.2mm
6	Both feet spacing	7.2mm±0.2mm
7	distance PCB board height	16.5mm±0.2mm
8	Testing accuracy	< 2%
9	detection range	0-1000
10	output current	1-2.5 nA/ppm
11	response time	< 50 S
12	Humidity of working humidity	5 - 99% RH
13	Repeatability	1% F.S
14	lag	1% F.S
15	drift	1
16	sensitivity	1
17	Protection Level	IP55
18	Working temperature	-15℃--+60℃
19	net weight	15grams
20	years of service life	10years

二、HD50Carbon monoxide sensor typical application：

1. Residential and commercial; 2. Car alarm; 3. Smart Home; 4. Commercial carbon monoxide test instrument; 5. Industrial carbon monoxide detector; 6. indoor parking lot ventilation control;
7. Portable carbon monoxide concentration meter; 8. CO Detection alarm。
