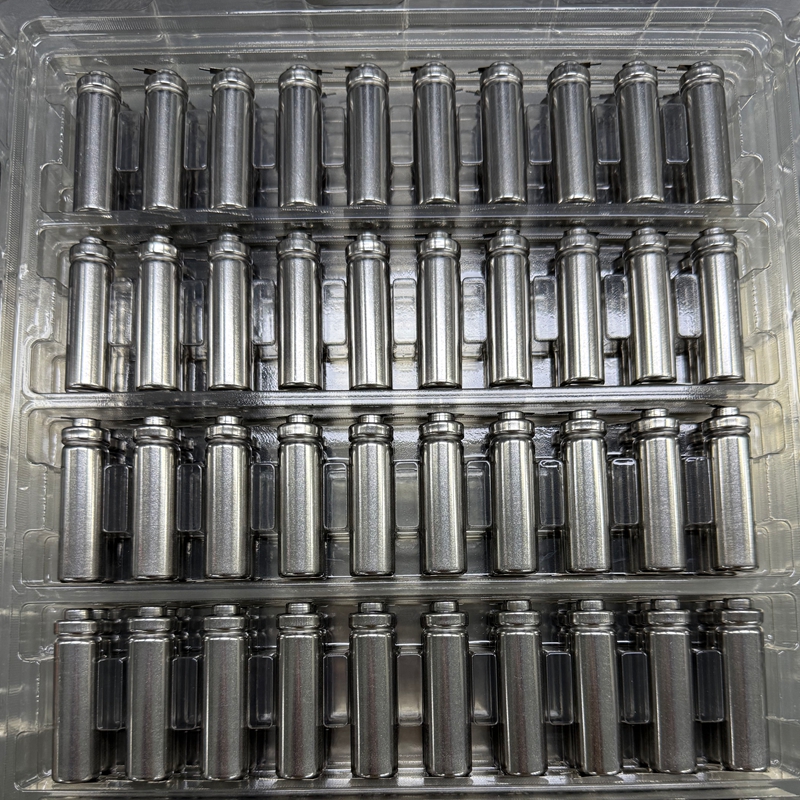

HD59 Carbon Monoxide Sensor

1. Long service life, electrochemical principle;
2. Low sensitivity to ethanol;
3. Highly linear output characteristics that reduce the effects of various interfering gases;
4. Excellent sensor consistency;
5. Excellent selectivity and repeatability for carbon monoxide;
6. Sensor signal output is linearly proportional to carbon monoxide concentration;
7. TUV Rheinland RoHS certified;
8. Meets UL2034 and EN50291 requirements.

Product details

1. Main parameters of HD59 carbon monoxide sensor:

1	length	51mm
2	high	19mm
3	Body diameter	14.5mm
4	Component foot length	3.1mm
5	Component pin spacing	50mm
6	Distance between legs	8.1mm
7	Height from PCB board	14.5mm
8	Detection accuracy	<2%
9	Detection range	0-10000
10	Output current	1-2.5 nA/ppm
11	response time	<50S
12	Working humidity	5 - 99% RH
13	Repeatability	1% F.S.
14	Hysteresis	1% F.S.
15	drift	1
16	Sensitivity	1
17	Protection level	IP55
18	working temperature	-15℃--+60℃
19	net weight	11 grams
20	Service Life	10 years

II. Typical Applications of the HD59 Carbon Monoxide Sensor:

1. Residential and commercial carbon monoxide alarms; 2. Vehicle alarms; 3. Smart homes; 4. Commercial carbon monoxide detectors; 5. Industrial carbon monoxide detectors; 6. Indoor parking lot ventilation controls; 7. Portable carbon monoxide concentration meters; 8. CO detection alarms.
